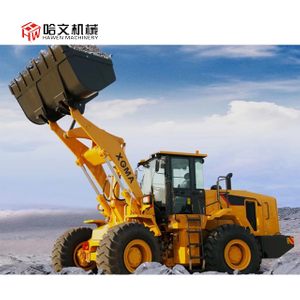

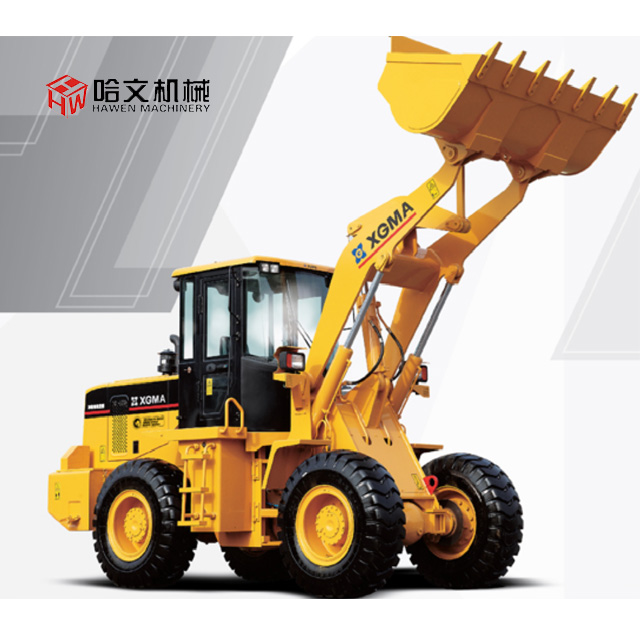

Wheel Loader is a kind of earthwork construction machinery widely used in highway,railway,construction,hydro power,port,mine and other construction projects.It is mainly used for shoveling bulk materials such as soil,sand,lime,coal etc.It can also be used for slight shoveling and excavation of ores,hard soil etc.Different auxiliary devices can also be used for bulldozing,lifting,loading and unloading of other materials.
The wheel loader used for block factory recommended is 3Ton or 5Ton
Engine | |
Model | YC6108G |
Rated power | 92KW |
Overal Dimension | |
Overall Length | 6950mm |
Overall Width | 2400mm |
Overall Height | 3150mm |
Min. Base to the ground | 356mm |
Dumping height | 2400mm |
Specification of type | |
17.5-25-12PR | |
Performance parameters of entire machine | |
Operating weight | 10600kg |
Bucket capacity | 16/70-20 |
Rated loading capacity | 3200kg |
Gradeability | ≥28。～30。 |
Turning angle | ±35。 |
Turning radius | 5860mm |
Torque converter | Single stage,4 elements |
Gear box | Planet-type |
Fuel tank capacity | 100L |
Hydraulic fuel tank capacity | 160L |
Lifting time | ≤6.5S |
Total cycling time | ≤10.5S |
Implements hydraulic pressure | 16Mpa |
Steering pressure | 13Mpa |
Travel speed | |
Forward gear I | 0-12km/h |
Forward gear II | 0-40km/h |
Reverse gear I | 0-16km/h |
· Unique energy-saving patent technology, including double pumps and double circuits as well as turning priority, is high efficient and energy-saving with better power performance and lower fuel consumption;
· Single rocker arm, long wheelbase as well as generally used fittings
· Super high dumping height (3060mm);
· Super large rated loading capacity(3200kg);
· Elegant appearance, high and big machine body;
· Sufficient structure intensity reserve;
· Connecting rod designed by optimized and emulation technology has strong breakout force and sound stability;
· Concentrated grease filling port facilitate maintenance and repairing;
· Reasonable axle load capacity distribution and sound machine stability;
· Superior machine performance and extraordinary operating efficiency;
· Various optional equipments and buckets can satisfy different needs of customers;
The brand of wheel loader cooperated with our company is XGMA,located in Xiamen City,Fujian province,the brand since 1951,which is one of the first company in China to make wheel loader.
XGMA is the Sole brand for Chinese National Antarctic Research Expedition!
Hundreds of wheel loader ready for shipment after hot testing in the factory
For 3Ton wheel loader,only the cap and the bucket will be dismantled during the container loading,it is easy to be installed after unloaded from the container.
