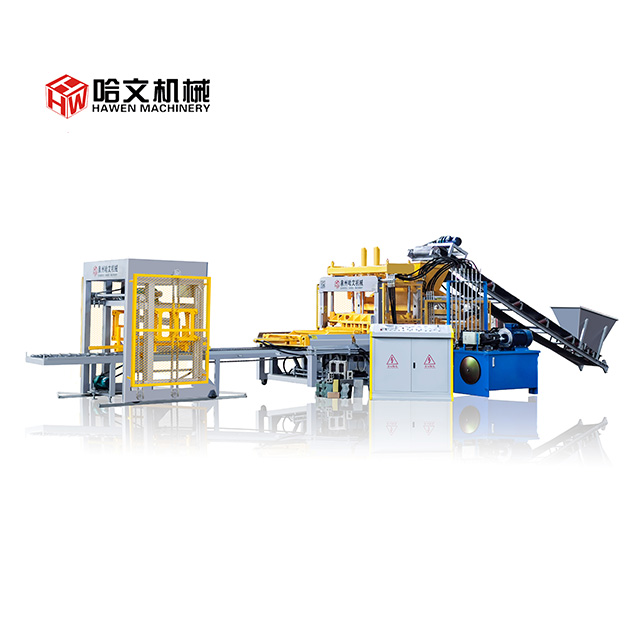

Introduction for QT6-15 block making machine
QT6-15 Cement brick making machine is fully automatic with PLC (Programmable Logic Controller) intelligent control.
The control system of brick making machine is equipped with SIEMENS PLC or Vigor PLC , production program, malfunction diagnosis system and remote control function,easy for operation and maintenance.
The Hydraulic system With“YUKEN” brand double proportional valve and directional valves, the flow and pressure of each movement could be adjusted on touch panel,machine running smoothly without impact,through the double vane pump,different actions run simultaneously,greatly improve production efficiency.
Main forming machine equipped with a basic Face-mix device,it can make the double layer paving stone just by changing the mould.
Technical Specification for QT6-15 Automatic Block Making Machine | |
Pallet Size: | 980x680mm |
Vibration | Table Vibration |
Rating Pressure | 21Mpa |
Cycle time | 14-22s |
Motors Power: | 41KW For Main forming machine parts only with material conveyor belt |
Vibration motor | 2x7.5KW |
Machine Dimensions: | 8600x2300x2600mm |
Gross Weight: | About 8T |
Raw Materials: | crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes |
Applied Products: | concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |
Applied Fields: | widely used in buildings, road pavings, squares, gardens, landscaping, city constructions |
Installation power of plant | 70-80KW |
Capacity Sheet for QT6-15 Automatic block making plant | ||||||
No. | Name | Dimension (mm) ( LxWxH) | Pictures | Number of block per Pallet | Block /1hour Estimated | Block /8hours Estimated |
1 | Hollow block | 400x200x200mm (8 inch ) |
| 6 | 1,080 | 8,640 |
2 | Hollow block | 400x150x200mm (6 inch ) |
| 8 | 1,400 | 11,500 |
3 | Hollow block | 400x100x200mm (4 inch ) |
| 10 | 1,800 | 14,400 |
4 | Square shape paver | 250x250x60mm |
| 6 | 1,080 | 8,640 |
5 | Interlocking paver | 200x100x60mm |
| 24 | 4,300 | 34,400 |
6 | Rectangle Paver | 200x100x60mm |
| 24 | 4,300 | 34,400 |
More information,please contact our sales team:export@hwmachines.com
