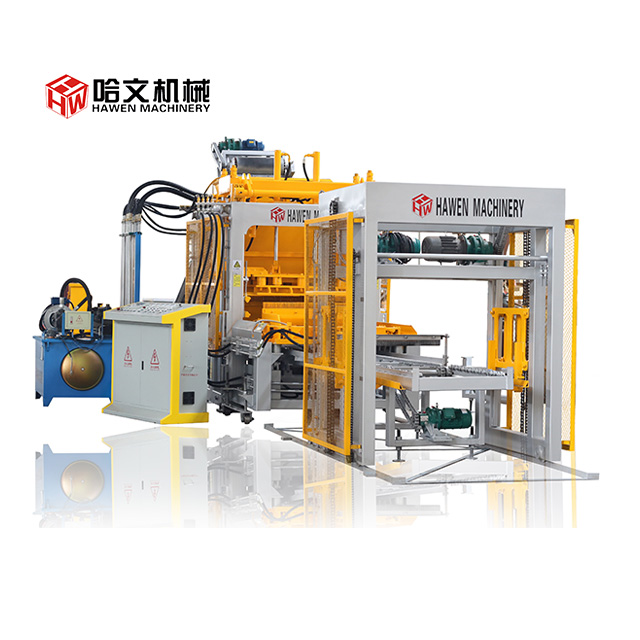

Introduction for QT8-15 block making machine
QT8-15 is a medium size of our QT series block,brick,paver,curb stone making machine,which is one of the most popular machine used in the market by overseas customer.
It can produce different kinds of product just changing the moulds to meet the requirement of the market.
The advanced electrical and hydraulic system controls the material feeding and molding of our block making machine, which makes the material feeding well-distributed and the moulding perfect.
●Hydraulic system:With“Yuken” brand double proportional valve and directional valves, the flow and pressure of each movement could be adjusted on touch panel,machine running smoothly without impact,through the double vane pump,different actions run simultaneously,greatly improve production efficiency.
●PLC Control system:Combined with German automatic control technology and system, it adopts German Siemens PLC and Siemens touch screen control to make each action accurate and reliable, computer operation saves time and effort, easy operation with low failure rate.
●Vibration system:With Static and Dynamic vibration table,it is designed to ensure the amplitude of the vibration table, so as to ensure the high density of concrete products.
Technical Specification for QT8-15 Automatic Block Making Machine | |
Pallet Size: | 980x880mm |
Vibration | Table Vibration |
Rating Pressure | 21Mpa |
Cycle time | 15-22s |
Motors Power: | 51KW For Main forming machine parts only with material conveyor belt |
Vibration motor | 2x11KW |
Machine Dimensions: | 9600x2300x2600mm |
Gross Weight: | About 10T |
Raw Materials: | crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes |
Applied Products: | concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |
Applied Fields: | widely used in buildings, road pavings, squares, gardens, landscaping, city constructions |
Installation power of plant | 100-120KW |
Capacity Sheet for QT8-15 Automatic block making plant | ||||||
No. | Name | Dimension (mm) ( LxWxH) | Pictures | Number of block per Pallet | Block /1hour Estimated | Block /8hours Estimated |
1 | Hollow block | 400x200x200mm | 8 | 1,440 | 11,520 | |
2 | Hollow block | 390x140x190mm M140 | 12 | 2,160 | 17,280 | |
3 | Hollow block | 400x100x200mm | 14 | 2,500 | 20,000 | |
4 | Solid block | 200x100x70mm | 44 | 10,500 | 94,500 | |
5 | Square shape paver | 250x250x60mm | 9 | 1,620 | 12,960 | |
6 | Paver mould | 200x100x60/80mm | 32 | 5,700 | 45,600 | |
7 | Paver mould | 200x100x60mm | 32 | 5,700 | 45,600 | |
8 | Paver mould | 200x160x60mm | 20 | 3600 | 28,800 |
More information,please contact our sales team:export@hwmachines.com
