Twin-shaft Concrete Mixer

Availability:
Quantity:

Twin-shaft

Twin-shaft-1

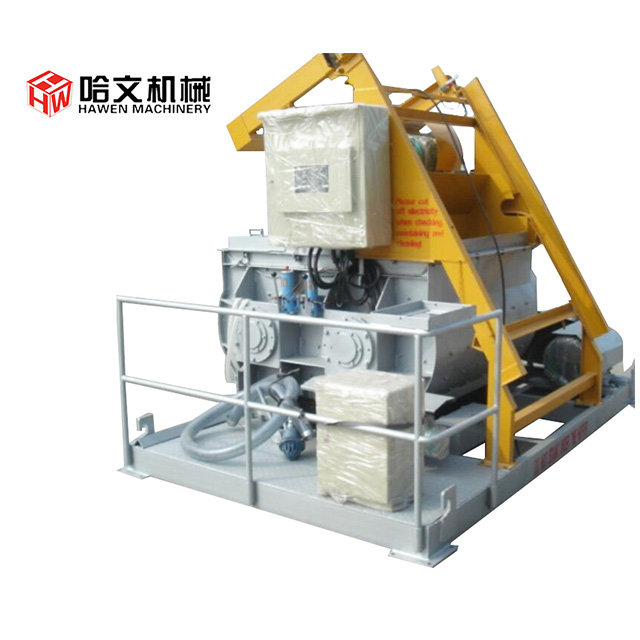

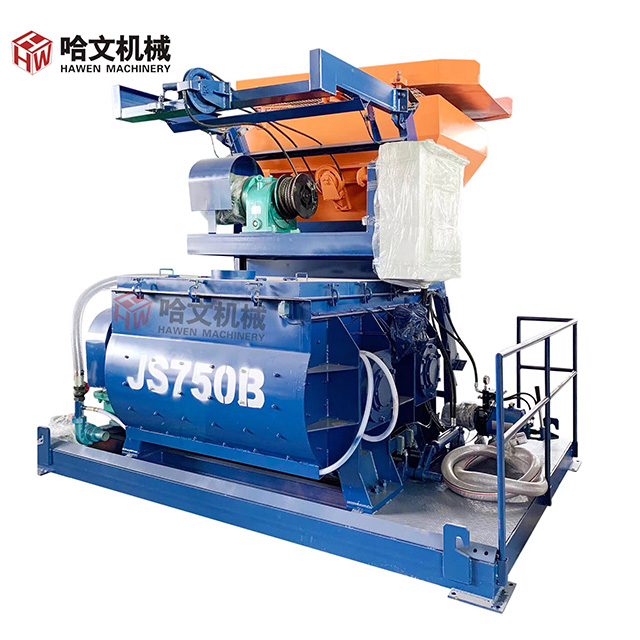

JS750 twin-shafts concrete mixer can be widely used in industry and civil architecture engineering, such as Concrete Block factory、 medium、small prefabricate structure factory、highway and wharf and so on. The Concrete mixer can be used to mix solid concrete, plastic concrete, flowing concrete, light-aggregate concrete and a variety of sand slurry ,it also can combined with PL1200 batching machine as a simple mixing station and as mixing and batching system for block factory.


The twin-shaft concrete mixer with below feature:


1. Unique no-sticky shaft technology

Through the unique design and reasonable allocation of the mixing arms,mixing vanes,material feeding points,material,solve the concrete sticky shaft problem,and reduce the labors intensity.


2. Excellent mixing performance

The concrete mixer consoles with German technology,it has the feature of strong mixing performance,mixing homogeneous and high productivity.


3. Accurate measurement accuracy

Adop computer and meter control model,fast calculation speed,short response time.with patented technology of clicking point filling and automatic buckle say function,make the measurement accurately.


4. Simple operating performance.

The concrete mixer is control by computer,can be automaticlly control,and manual operation,simple operation,easy maintenance


5. Convenient for installation

The overall structure is module type,mixer tank,support leg,ladder,bucket are independent,easy to unloading,the installation and transportation is quite convenient.


6. Special Screen Mesh

With a Screen mesh on the top of bucket hopper,can avoid the big size of stone to enter the bucket,so as to protect the mould shoe be damaged by big size of stone.


Twin-shaft-2

Model

Unit

JS750

Rated Feeding Volume

L

1200

Rated discharging Volume

L

750

Productivity

m3/h

≥35

Power of mixing motor

kw

39.5

Maximum size of aggregate

Pebble/Macadam

mm

80/60

Mixing blades Speed

r/min

35

Mixing blades

Number


2x7

External dimension

(L×W×H )

Working condition

Transportation condition

mm

3400×2400×4900

3220×2400×2600

Weight (T)

kg

6000


Twin-shaft-3

Twin-shaft-4


Twin-shaft-5

Twin-shaft-6


Twin-shaft-7

Twin-shaft-8

There are two design of lifting system to take the material from batching machine to planetary mixer,one is Skip hoist hopper system,the other one use Conveyor belt.
